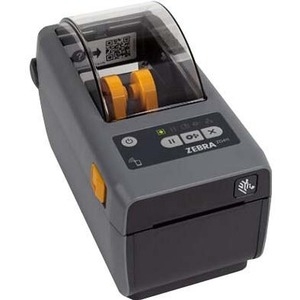

Zebra Direct Thermal Printer ZD411 203 dpi USB USB Host Modular Connectivity Slot BTLE5 APAC Cord Bundle EU UK AUS JP Swiss Font EZPL ZD4A022-D0PM00EZ
Direct Thermal Printer ZD411 203 dpi USB USB Host Modular Connectivity Slot BTLE5 APAC Cord Bundle EU UK AUS JP Swiss Font EZPL
Elevate your expectations with the advanced, compact printers, built for enduring performance
Your operations demand reliable printing. You need enhanced features, security, next-generation technology and management capabilities to help you work smarter and achieve more. Get it all with Zebra's compact, 2-inch ZD411 desktop printers, designed to fit almost anywhere. Featuring a new architecture and our exclusive Print DNA software suite, they offer enhanced processing power, unmatched security and intuitive setup and operation. Change media quickly with the new media handling design and add capabilities with field-installable options. Connect your way and incorporate wireless capabilities with the optional kit. An extension of the proven ZD400 Series, they're ready to perform flawlessly for years to come.
ZD411 printers have five LED icons that allow you to instantly see what's needed to keep your printers up and running, from replenishing media to resolving printer issues. The advanced three-button user interface replaces the typical single-button/single-light interface common in desktop printers.
Simple to Setup, Use and Manage Today | Ready to Evolve for Tomorrow
Featuring Zebra's Print DNA software suite, ZD411 printers are easy to integrate, simple to operate and can be managed onsite or remotely via a web-based dashboard. They're designed to evolve with technology with an innovative architecture that powers future printing and emerging applications to keep your workflows at peak performance.
Change Media Easily
Color-coded touch points and a new media-handling design guide you through speedy media changes to keep printers operational and workers on task. Replace ribbon intuitively and quickly with less mess, hassle and training time - and fewer calls into IT.
Multiple Models to Match Your Needs | Flexibility for Nearly Every Use Case
Available in direct thermal, thermal transfer and healthcare models, ZD411 printers support supports nearly any 2-inch printing application.
It's Time to Advance | Powerful Printing with Intuitive Operation
Technology is constantly evolving, and so are your business needs. Printers support ZD411 printers are ready to grow with you. Incorporating a powerful new processor, you can run more tasks and perform more operations simultaneously. Advanced features and connectivity options, including field-upgradeable media handling and wireless kits, make them stand apart.
Smart Design for Smarter Operations | Backwards Compatible with Virtually any Existing Printer
Integrate your ZD411 into your existing printer fleet seamlessly. Continue to use the same label formats and applications you're using today. These printers support EPL and ZPL printer languages and can emulate other languages associated with other printer brands using Zebra's Print DNA Printer Emulations.
- Print methods: Thermal Transfer or Direct Thermal
- ZPL and EPL programming languages
- 5 status icon, 3 button user interface
- USB 2.0, USB Host
- Printer setup mobile app for Android and iOS via BLE (Bluetooth Low Energy 5) connection BLE is provided for use with Zebra printer setup mobile app only
- Real Time Clock (RTC)
- OpenACCESS™ for easy media loading
- Dual-wall frame construction
- ENERGY STAR® certified
- PDF Direct
-
Brochure
Standard Memory | 256 MB |
Power Source | AC Supply |
Operating System Supported | Link - OS |
Limited Warranty | 2 Year |
USB | Yes |
USB Host | Yes |
Bluetooth | Yes |
Near Field Communication (NFC) | Yes |
Application/Usage | Desktop |
Barcode Symbology Supported | Codablock |
LOGMARS | |
EAN-8 | |
Code 11 | |
Planet Code | |
UPC-A | |
EAN-13 | |
Industrial 2 of 5 | |
PDF417 | |
MSI | |
Code 49 | |
POSTNET | |
UPC | |
2D | |
Code 39 | |
Code 128 | |
Standard 2 of 5 | |
1D | |
AZTEC | |
QR Code | |
ISBT-128 | |
EAN With 2 or 5 Digit Extension | |
Micro PDF | |
Codabar | |
Interleaved 2 of 5 | |
UPC-E | |
Data Matrix | |
Maxi Code | |
Plessey | |
Code 93 | |
Maximum Print Width | 56 mm (2.20") |
Recommended Use | Label/Receipt Print |
Features | Compact |
Dual Wall Frame | |
Maximum Mono Print Speed | 152 mm/s |
Print Color Capability | Monochrome |
Optional Connectivity | Serial (RS-232) |
Ethernet | |
Wireless LAN | |
Real Time Clock | Yes |
Maximum Print Resolution (dpi) | 203 |
Storage Relative Humidity | 5% - 95% |
Storage Temperature | -40°C - 60°C |
Operating Temperature | 4.4°C - 40.6°C |
Operating Relative Humidity | 10% - 90% |
Weight (Approximate) | 997.9 g |
Height | 152.4 mm |
Width | 114.3 mm |
Depth | 218.4 mm |
Language Emulation | ZPL II |
XML | |
EZPL | |
ZPL | |
ZBI | |
EPL II | |
EPL |
Product Type | Direct Thermal Printer |
Manufacturer Part Number | ZD4A022-D0PM00EZ |
Manufacturer Website Address | http://www.zebra.com/ap/en.html |
Manufacturer | Zebra Technologies Corporation |
Product Model | ZD411 |
Product Name | ZD411 Direct Thermal Printer |
Product Series | ZD400 |
Brand Name | Zebra |
Media Thickness | 190.5 µm |
Maximum Roll Diameter | 127 mm |
Media Type | Continuous Receipt |
Fanfold | |
Roll Fed | |
Tag Stock | |
Wristband | |
Continuous Paper | |
Media Sensor | Multi-position Transmissive/Gap Sensor |
Moveable Reflective/Black Mark Sensor | |
Full Width Sensor | |
Maximum Label Width | 57 mm |
Maximum Label Length | 991 mm |
Package Contents |
|
Platform Supported | Android |
PC | |
iOS | |
Environmentally Friendly | Yes |
Environmental Certification | RoHS |
REACH | |
Cables Included | USB |
Energy Star | Yes |
Power Cable Localization | UK |
AUS | |
EU | |
JP | |
Power Adapter Included | Yes |
