main product photo

Zippy 2u Redundant Psu 660w G1w2-5660v3v Psuzipg1w25660v3v

SKU
249615
Brand
Zippy
Manufacturer Link
MPN
PSUZIPG1W25660V3V
Manufacturer Product Link
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$760.00
Buy Now And Earn 760 Reward Points!
Add to Compare

* TEMPERATURE RANGE: OPERATING: 0℃ ~ 40℃, STORAGE: -20℃ ~ 80℃
* HOLD UP TIME: 16 ms MINIMUM AT FULL LOAD & NORMAL INPUT VOLTAGE
* EFFICIENCY: >80% TYPICAL AT 230 VAC FULL LOAD
* POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms, OFF DELAY 1 ms
* REMOTE ON/OFF CONTROL
* OVER POWER PROTECTION:110%~160%
* OVER VOLTAGE PROTECTION: +5V→5.7~6.2V, +3.3V→3.7~4.1V, +12V→13.3~14.3V;
* SHORT CIRCUIT: +5V, +3.3V, +12V, -12V, +5VSB
* OVER CURRENT PROTECTION: +5V→35~48A, +12V→68~93A, +3.3V→35~48A
* SAFETY: TO MEET UL, CUL, TUV, CCC
* LEAKAGE CURRENT: 3.5 MA. MAX. AT NOMINAL VOLTAGE 250VAC
* EMI NOISE FILTER: FCC CLASS A, CISPR22 CLASS A
* WARMING METHOD: BUZZER SOUND, TTL, FAULT LED

300x101.2x84(mm)
11.81x3.98x3.31(inch)

　
VOLTAGE: 100V ~ 240VAC (WITH ± 10% TOLERANCE)
FREQUENCY: 47Hz ~ 63Hz
INPUT CURRENT: 10/5A MAX AT ANY LOW/HIGH INPUT VOLTAGE
INRUSH CURRENT: 60/80A @ 115/230VAC (25℃)
POWER FACTOR CORRECTION: 95% @ 110V, FULL LOAD

　

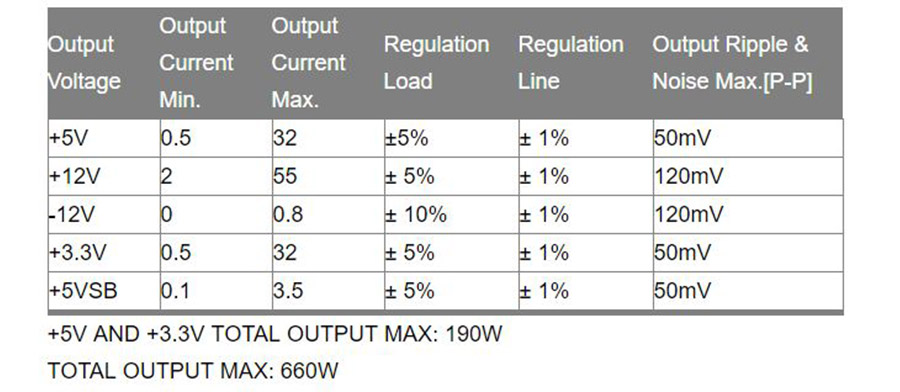

Output Voltage Output Current Min. Output Current Max. Regulation Load Regulation Line Output Ripple & Noise Max.[P-P]
+5V 0.5 32 ±5% ± 1% 50mV
+12V 2 55 ± 5% ± 1% 120mV
-12V 0 0.8 ± 10% ± 1% 120mV
+3.3V 0.5 32 ± 5% ± 1% 50mV
+5VSB 0.1 3.5 ± 5% ± 1% 50mV
+5V AND +3.3V TOTAL OUTPUT MAX: 190W
TOTAL OUTPUT MAX: 660W

Featurs

  • TEMPERATURE RANGE: OPERATING: 0℃ ~ 40℃, STORAGE: -20℃ ~ 80℃
  • HOLD UP TIME: 16 ms MINIMUM AT FULL LOAD & NORMAL INPUT VOLTAGE
  • EFFICIENCY: >80% TYPICAL AT 230 VAC FULL LOAD
  • POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms, OFF DELAY 1 ms
  • REMOTE ON/OFF CONTROL
  • OVER POWER PROTECTION:110%~160%
  • OVER VOLTAGE PROTECTION: +5V→5.7~6.2V, +3.3V→3.7~4.1V, +12V→13.3~14.3V;
  • SHORT CIRCUIT: +5V, +3.3V, +12V, -12V, +5VSB
  • OVER CURRENT PROTECTION: +5V→35~48A, +12V→68~93A, +3.3V→35~48A
  • SAFETY: TO MEET UL, CUL, TUV, CCC
  • LEAKAGE CURRENT: 3.5 MA. MAX. AT NOMINAL VOLTAGE 250VAC
  • EMI NOISE FILTER: FCC CLASS A, CISPR22 CLASS A
  • WARMING METHOD: BUZZER SOUND, TTL, FAULT LED

specification

  • VOLTAGE: 100V ~ 240VAC (WITH ± 10% TOLERANCE)
  • FREQUENCY: 47Hz ~ 63Hz
  • INPUT CURRENT: 10/5A MAX AT ANY LOW/HIGH INPUT VOLTAGE
  • INRUSH CURRENT: 60/80A @ 115/230VAC (25℃)
  • POWER FACTOR CORRECTION: 95% @ 110V, FULL LOAD

Dimension

300x101.2x84(mm)
11.81x3.98x3.31(inch)
