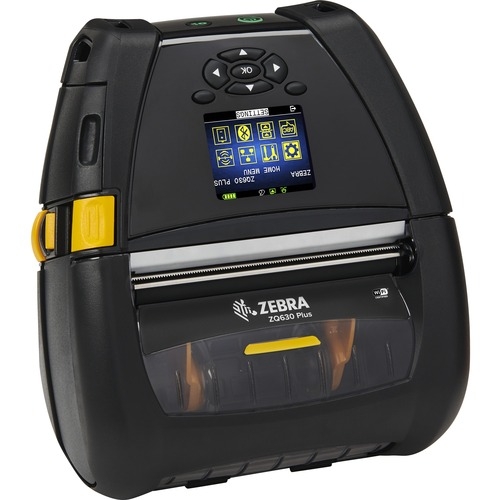

Zebra DT Printer ZQ630 Plus English Trad Chinese Korean fonts Dual 802.11AC / BT4.x Linered platen 0.75in core Group A Belt clip ZQ63-AAWAA04-00
SKU
401384
Brand
MPN
ZQ63-AAWAA04-00
Warranty
Standard Manufacturer's Warranty
$1,543.00
Buy Now And Earn 1543 Reward Points!
DT Printer ZQ630 Plus English Trad Chinese Korean fonts Dual 802.11AC / BT4.x Linered platen 0.75in core Group A Belt clip
Want to improve inventory management and customer service in your store? With the ZQ600/ZQ600 Plus Series mobile printer, you can. The ZQ600/ZQ600 Plus Series takes Zebra's popular QLn platform and makes it even better-adding advanced technology and innovative design that drive productivity, ease-of-use and manageability to a new level. A large color display takes all the guesswork out of printer status. Advanced battery technology and more battery capacity, power every minute of the longest shift. The instant wake-up feature ensures the ZQ600/ZQ600 Plus Series never sleeps on the job. Your workers get the fastest, most dependable wireless connections inside the four walls and your IT department will find the ZQ600/ZQ600 Plus Series easier to integrate, manage, setup and secure. The ZQ600/ZQ600 Plus Series- the next evolution in the gold standard for mobile label and receipt printing. The ZQ600 Plus Series delivers the same features and specifications as the ZQ600 Series, using redesigned electronics for long-term product continuity and availability. The ZQ600 Plus printers require new, different firmware and drivers.Premium Features for Maximum Productivity
The Latest Wireless Connections
The ZQ600/ZQ600 Plus Series offers the fastest, most dependable wireless connections inside the four walls. With support for 802.11ac Wi-Fi and its latest security protocols, plus Bluetooth® Classic and Low Energy (BLE), your workers can count on blazing fast and secure connections.
Industry-Standard 802.11r Fast Roaming for Seamless Access
With support for 802.11r fast roaming technology, your workers can depend on a connection while they are on the move.
Instant Wake-Up Over Wi-Fi
This intelligent printer enters sleep mode when it is idle, and automatically wakes up the moment the user sends a print job. And the ZQ600/ZQ600 Plus Series' instant wake-up works over both Wi-Fi and Bluetooth.
Large Color Display Makes Configuration and Operation a Snap
The ZQ600/ZQ600 Plus Series provides a large display, userfriendly interface and easily customized menu. The ZQ600/ZQ600 Plus Series is based on Zebra's Link-OS menu system to deliver a common user experience across other Zebra Link-OS mobile, desktop and industrial printers.
Business Tough-Built for All-Day Every Day Enterprise Use
While the ZQ600/ZQ600 Plus Series is lightweight and comfortable to wear all shift long, it is loaded with features that give it longlasting durability, including over-molding, a tempered-glass display and seamless one-piece design. The high-grade resin is one of the toughest plastics available for greater impact resistance.
Unsurpassed Battery Power Management
Do More on a Single Charge
With the ZQ600/ZQ600 Plus Series' high-capacity 3250 mAH (ZQ610 and ZQ610 Plus / ZQ620 and ZQ620 Plus) and 6800 mAH (ZQ630 and ZQ630 Plus) battery, you can be sure that every worker has plenty of power for every shift. Plus Power Smart Print Technology™, Zebra's patented technology, maximizes efficiency by delivering the exact amount of power required for the highest quality printing, saving an estimated 20 to 30 percent of battery power
Features
- Apple® iOS, Android™ and Windows® Mobile connectivity
- Direct thermal printing of barcodes, text and graphics
- CPCL, EPL™ and ZPL® programming languages
- 512 MB Flash supports downloadable programs, receipt formats, fonts and graphics (128 MB available for user storage)
- Built-in battery charger
- Belt clip for unobtrusive and convenient printing (not compatible with extended capacity battery
- Black mark and gap media sensing using fixed center position sensors
- Easy-to-use peel and present mode
- Label present sensor for issuing labels one at a time
- Tear bar for easy media dispensing
Guides & Documents
Battery Information
Battery Capacity | 6800 mAh |
Technical Information
Application/Usage | Industrial |
Mobile | |
Desktop | |
Barcode Symbology Supported | UCC/EAN 128 |
TLC 39 | |
QR Code | |
EAN-13 | |
Data Matrix | |
Code 93 | |
POSTNET | |
PDF417 | |
MSI PLESSEY | |
Micro PDF-417 | |
Maxi Code | |
Interleaved 2 of 5 | |
GS1 DataBar | |
FIM | |
Code 39 | |
Code 128 | |
Codabar (NW-7) | |
AZTEC | |
2 and 5 Digits Add-on | |
EAN-8 | |
UPC-A | |
UPC E with 2 and 5 add on | |
Maximum Print Width | 104 mm (4.09") |
Recommended Use | Label/Receipt Print |
Connectivity Technology | Wireless |
Features | Belt Clip |
Water Resistant | |
Dust Resistant | |
Shoulder Strap | |
Mobile Device Printing | Yes |
Print Color Capability | Monochrome |
Maximum Print Length | 813 mm |
Character Sets | Agfa Monotype |
Universal Font Scaling Technology (UFST) | |
Optional Connectivity | USB |
Ethernet | |
Serial (RS-232) | |
Ingress Protection (IP) Rating | IP54 |
Maximum Print Resolution (dpi) | 203 |
Display & Graphics
Display Screen | Yes |
Memory
Standard Memory | 256 MB |
Power Description
Power Source | Battery |
Software
Operating System Supported | Link-OS |
Miscellaneous
Platform Supported | Android |
iOS | |
PC | |
Certifications & Standards |
Emissions:
|
Network & Communication
Bluetooth | Yes |
Wireless LAN | Yes |
Wireless LAN Standard | IEEE 802.11ac |
Near Field Communication (NFC) | Yes |
Physical Characteristics
Weight (Approximate) | 1.10 kg |
Height | 82.6 mm |
Width | 165.1 mm |
Depth | 186.7 mm |
Fonts & Emulation
Language Emulation | ZPL |
ZBI 2.0 | |
XML | |
CPCL | |
EPL |
General Information
Product Type | Direct Thermal Printer |
Manufacturer Part Number | ZQ63AAWAA0400 |
Manufacturer Website Address | http://www.zebra.com/ap/en.html |
Manufacturer | Zebra Technologies Corporation |
Product Model | ZQ630 Plus |
Product Name | ZQ630 Plus Direct Thermal Printer |
Product Series | ZQ600 |
Brand Name | Zebra |
Media Types & Handling
Media Thickness | 165.1 µm |
Maximum Roll Diameter | 66.04 mm |
Media Type | Die-cut Label |
Black Mark | |
Black Bar | |
Tag | |
Label | |
Linered Media | |
Receipt | |
Gap | |
Media Sensor | Black Mark Sensor |
Gap Sensor | |
Maximum Label Width | 111.76 mm |
Maximum Label Length | 812.80 mm |
