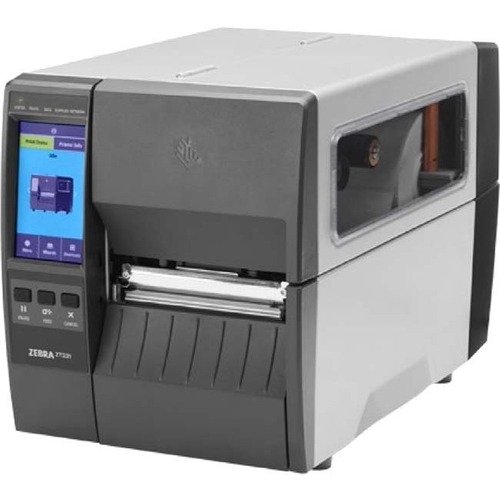

Zebra TT Printer ZT231 4 300 dpi Thermal Transfer Tear UK/AU/JP/EU Cords USB Serial Ethernet BTLE USB Host EZPL ZT23143-T0P000FZ

SKU
398320
Brand
MPN
ZT23143-T0P000FZ
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$1,919.00
Buy Now And Earn 1919 Reward Points!

TT Printer ZT231 4 300 dpi Thermal Transfer Tear UK/AU/JP/EU Cords USB Serial Ethernet BTLE USB Host EZPL

Demands are rising and timelines are shrinking. Do you have the printing capabilities to keep up - without interruption? The ZT231 delivers the winning combination of the right features at the right price, along with the long-lasting quality you expect from Zebra. Fast print speeds, high-resolution print quality, large color touchscreen, future-forward design and more - all in one space-saving footprint. Plus, add optional capabilities like RFID*, wireless connectivity and media handling features when you need them. But that's not all. Get built-in intelligence to make your work easier, and unmatched security so nothing stands in your way. That's how Zebra defines value.

GET MORE VALUE WITH ZEBRA

Simple Operation with Smart Features

Reduce training time with the ZT231's easy-to-use 4.3" full-color touchscreen. See status at a glance, access wizards and helpful how-to videos and make changes with the touch of a finger or gloved hand. Seamlessly integrate the ZT231 into your existing network as it is backwards compatible and features Printer Emulations to replace other brands without having to change label formats or rewrite code.

Make It Easy for Your IT Team

Take advantage of Zebra's robust, ever growing Print DNA software suite for added capabilities. Easily configure, troubleshoot and manage your printers onsite or remotely via a web-based dashboard. Compare your printer security settings against best practices and adjust to match your preferences, while protecting your data from vulnerabilities.

The Smart Choice Now and Later

The benefits of buying a ZT231 don't end at the point of purchase. Expand your printer's capabilities with field-installable upgrades when you need them. Add options such as a cutter or peeler, wireless connectivity or even UHF RFID* encoding.


BUILT TO PERFORM. ENGINEERED TO ENDURE.

Don't Compromise on Quality

With a durable metal frame, the ZT231 is ideal for light industrial environments. Print crisp text and barcodes with optional 300 dpi resolution. Advance your label throughput with industry-leading print speeds up to 12 ips at 203 dpi. Be confident knowing you're backed by Zebra, the #1 leader in barcode printing.

Features
  • Print methods: direct-thermal or thermal-transfer
  • Construction: metal frame and metal enclosures
  • Bi-fold media door with large clear window
  • Side-loading supplies path for simplified media and ribbon loading
  • Thin film printhead with E3™ Element Energy™ Equalizer for superior print quality
  • Three-color LEDs for quick printer status
  • 4.3" color resistive touch screen with intuitive menu for quick operation and settings
  • Communications: USB 2.0, RS-232 Serial port, 10/100 Ethernet, and USB Host
  • ENERGY STAR® certified
  • Bluetooth Low Energy (BTLE) technology for enhanced location precision
Guides & Documents
Memory
Standard Memory256 MB
Power Description
Power SourceAC Supply
Technical Information
Application/UsageDesktop
Barcode Symbology SupportedCode 11
Code 128 (A/B/C)
Code 39C
Code 49
Code 93
Data Matrix
EAN-13
Planet Code
Plessey
POSTNET
QR Code
RSS Composite
RSS-14
Standard 2 of 5
TLC 39
UCC Case Codes
LOGMARS
Maxi Code
Micro PDF-417
MSI
PDF417
UPC-A
UPC-A with EAN 2 or 5 Digit Extension
UPC-E
EAN-8
Industrial 2 of 5
Interleaved 2 of 5
ISBT-128
AZTEC
Codabar
Codablock
Maximum Print Width104 mm (4.09")
Recommended UseLabel Print
FeaturesTear Up
Print Color CapabilityMonochrome
Maximum Print Length1854 mm
Optional ConnectivityWireless LAN
Real Time ClockYes
Maximum Print Resolution (dpi)300
Display & Graphics
Display ScreenYes
Screen Size10.9 cm (4.3")
Interfaces/Ports
USBYes
Serial PortYes
USB HostYes
Network & Communication
BluetoothYes
EthernetYes
Ethernet TechnologyEthernet
Physical Characteristics
Weight (Approximate)9.07 kg
Height279.4 mm
Width241.3 mm
Depth431.8 mm
Fonts & Emulation
Language EmulationZPL II
EPL
ZPL
EZPL
ZBI 2.0
EPL2
General Information
Product TypeThermal Transfer Printer
Manufacturer Part NumberZT23143-T0P000FZ
Manufacturer Website Addresshttp://www.zebra.com/ap/en.html
ManufacturerZebra Technologies Corporation
Product ModelZT231
Product NameZT231 Industrial Printer
Brand NameZebra
Miscellaneous
Platform SupportedPC
Certifications & Standards

IEC 62368-1, EN55022 Class B, EN55024, EN55035, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus, CE Marking, UKCA, VCCI, RCM, S- Mark, CCC, CU EAC, BSMI, KCC, & BIS

Energy StarYes
Power Cable LocalizationJP
EU
AUS
UK
Media Types & Handling
Media Thickness250 µm
Maximum Roll Diameter203 mm
Media TypeContinuous Label
Die-cut Label
Label
Notch
Black Mark
Media SensorReflective Media Sensor
Transmissive Media Sensor
Maximum Label Width114 mm
